Using Onboard Intel Cedar Trail-D Low power processor for ITX2550 Based Industrial Kiosk Motherboard

80 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 98.30 / piece
Click to view offer
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

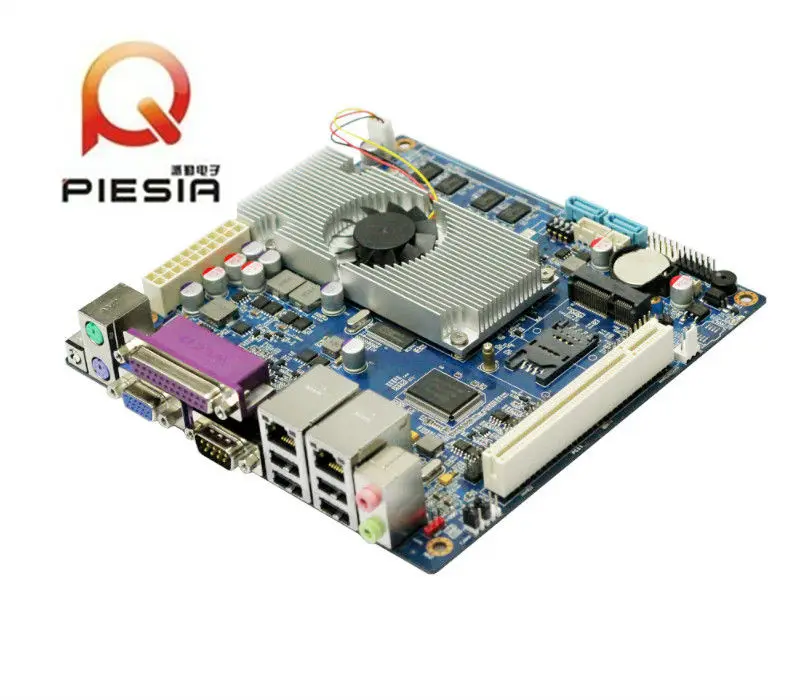

Onboard Intel Cedar Trail-D Low power processor for ITX2550 Based Industrial Kiosk Motherboard

ITX2550 Motherboard Can be applicated in many places:Firewall;AD Player;AIO ; Thin Client; HTPC;VOD; IPC; POS etc.

Specifications:

Main Features

Application Area

AD Player;ultrathin AIO machine; Monitoring System; HTPC;VOD; IPC; POS etc.

Form Factor

Mini-ITX 170mm*170mm

Chipset Manufacturer

Intel

CPU

Intel ® Cedar Trail-D Atom D2550dual-core processors

Chipset

Intel® Atom D2550+NM10 express chipset

Integrated Graphics

Integrated Intel GMA3650 Graphics Core( shared memory 128/224MB)

Memory

Onboard 1333MHz DDR3 2GB

Expansion Socket

1*mini PCIE for WIFI/3G;1* mini PCIE for mSATA SSD (support wifi )

Slots

1*SIM card slot;1*PCI slot

Storage

2*SATAII;1*mSATA SSD

Audio

Onboard HD ALC662 chipset(Line-out,Mic-in);Support SPDIF

Network

2*RTL8111E-VL 10/100/1000Mbps Gigabit Ethernet LAN

USB

6*USB 2.0/1.1(4 external;2 internal)

LVDS

Onboard 18/24bit Single Channel LVDS connector

Watchdog

Level 255 timer

Super I/O

W83627DHG

BIOS

EFI BIOS

Rear Panel I/O

4*USB 2.0/1.1 ports

1* DC-12V power supply

2* RJ45 port

1* audio I/O port

1*LPT

1*PS/2 interface (Mouse/Keyboard)

1*COM(RS-232)

1*VGA

Internal I/O

2*USB 2.0 ports pin header

CPU/SYS fan connectors

20-pin ATX Power connector

5*COM expansion header(3*RS-232 /2*RS-485)

1*Audio expansion header

1*VGA expansion header

1*PS/2 expansion header

1*GPIO (8 bit)

Net Weight

500g

TDP

13W

Working Temperature

-20°C~70°C (-4°F~158°F)

Storage Temperature

-20°C~80°C (-4°F~176° )

Operating Humidity

10%~90% (non-condensing)

The Motherboard support Windows7/8 32bits/64bits OS /Liunx System/ X86System

The photo pictures of our Products :

Other Advantages:

1.Embedded high performance industrial motherboard.

2.Intel ® Cedar Trail-D Atom D2550 dual-core CPU;Intel Atom N2600/N2800 dual-core processors optional,low TDP,suitable for Fanless solution. onboard DDR3 2GB memory.

3.Support WIFI,3G SIM card,support Mini SATA ,more efficiency.

4.Support power booting/plug and play,Timer-power-on.

5.Support 18/24bit single ch LVDS output.VGA and LVDS asynchronous with show supported.

6.Reliable, High stability, Low noise, low power consumption.Perfectly suitable for AD Player/Digital Signage/NC Terminal/VOD/POS/HTPC etc.

7.OEM service offered!

The package:

kage

Retail sample (size)

Batch (size)

delivery details

Carton box (20pcs)

220*210*75mm

510*440*230mm

Within 3 days (sample order)

Carton box (30pcs)

220*210*75mm

620*400*190mm

7-25 days in a bulk

The kits includes: Vga cables/sata Cables/sata power cables/CD driver.

The package:

kage

Retail sample (size)

Batch (size)

delivery details

Carton box (20pcs)

220*210*75mm

510*440*230mm

Within 3 days (sample order)

Carton box (30pcs)

220*210*75mm

620*400*190mm

7-25 days in a bulk

The kits includes: Vga cables/sata Cables/sata power cables/CD driver.
