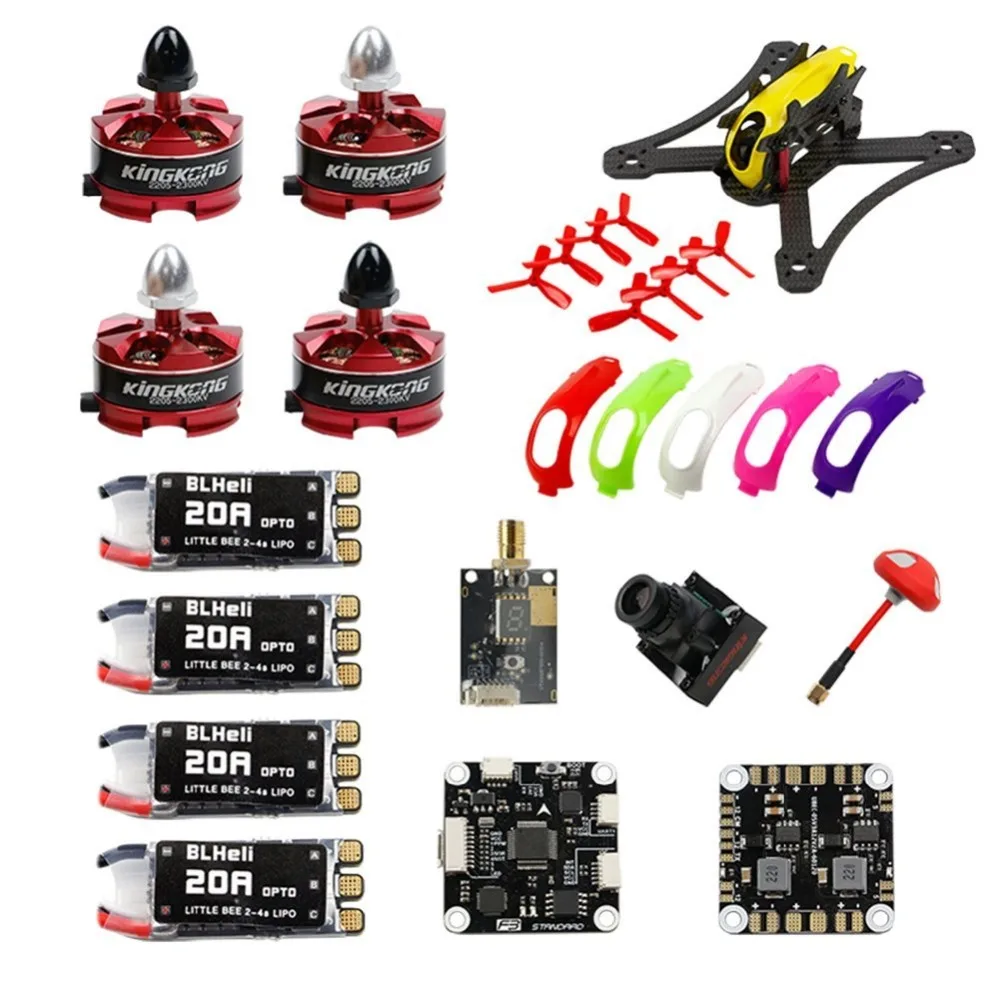

RAMMUS 180 FPV PNP DIY Kit RAMMUS 700TVL Camera 2205 Frame Kit F3 PLUS FC2300KV Motor 20A ESC 5.8G VTX Drone F19958
Description:
Frame Description:
Model: Rammus
Weight: 98g
Wheelbase: 200mm
Arm: 4mm
Side Board :2mm
Other Board :2mm
FC
Item Name: F3 PLUS(SPRAaNG F3)
36x36mm board, 30.Smm mounting holes.
Weight: 5.6g
*STM32F3 CPU.
*MPU6050 Accelerometers and Gyroscopes
*MicroUSB socket.
MOTOR
Item Name: kingkong 2205 2300KV Motor Optional GW and CCW
KV: 2300
Voltage: 2-4s Lipo
Propeller: 4-6 inch
Weight: 30g
ESC
Item name: BLHEU LittleBee 20A ESC
Input Voltage: 2-4S Lipo
8EC Output: No
Continue Current: 20A,Burst Current:25A up to 10S
Size: 24.5*12.8
Weight: 6g(indude Wire)
Firmware: LittleBee 20A Multi
CAMERA
Item name:SONY 700TVL CCD Camera
Format: PAL
View Angle 115
Lentype:F2.0/2.8mm
Voltage:DC 8V-18V
Weight:16.4g
TX
Item name: 5.8G 40CH 400mW Mini AV Transmitter
Voltage:5v
Transmitting Power400MW
Working Current:0.5A
Dimension:28.5*21.3mm(Exduding Antenna)
Weight: 6.7g
Distribution Board
36x36mm board, 30.Smm mounting holes Weight: 5.4g
Input voltage range (2S-6S operation): 7.2 – 26V
DC Outputs:
5.0V +/- 0.1VDC
Continuous current: 3 Amps
12.0V +/- 0.2VDC
Continuous cuirent: 2 Amps
Package Included:
FPV Drone Electrical Combo xl(as the picture)
Rammus 180 KIT xl
Package Size:235xl95x80mm
Package Weight700g
