|Brand name: HGLRC|

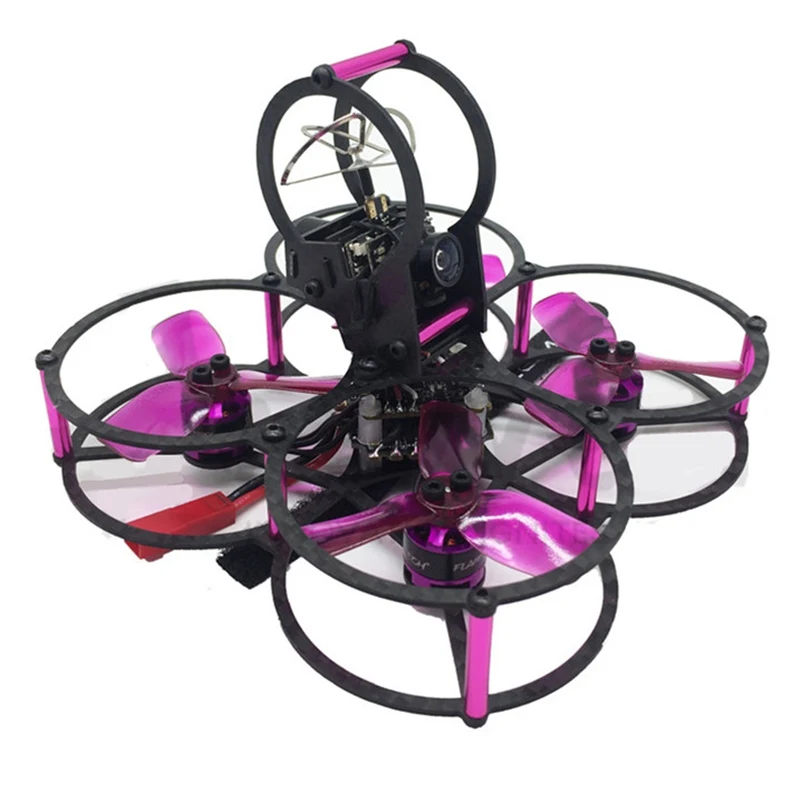

|Item name: XJB-75 Mini FPV Racing Drone BNF|
|Weight: 66g( battery not include)|
|Motor: HGLRC FLAME 1104 7500KV brushless motor(2S pull 120g,3S pull 200g)|
|ESC: HGLRC XR396-25A BLHELI 2-4S 4 in 1 ESC|
|Propeller: R2030 3-blades propeller|
|Camera: 600TVL HD CMOS 1/4 inch|
|VTX: 5.8g 0/25/50/200MW 40CH NTSC/PAL video transmitter|
|Flight controller: HGLRC PBF3-EVO Betaflight F3|
|Firmware of flight controller: Betaflight 3.01|
|Flight time : 5minutes|
|Rear LED Ready (LED_Strip function)|
|Battery: HGLRC 7.4V 550mah 35C lipo battery|
|HGLRC PBF3-EVO Betaflight F3:|
|Mount hole: 20mm*20mm|
|2OZ*4 Layer Board|
|Processor: STM32 F303 MCU|
|Sensor: SPI Sensor MPU6000|
|Firmware version: Betaflight 3.01|
|Receive:SBUS/For dsm x/PPM ETC.|
|HGLRC XR396 25A BLHELI 4 in 1 ESC:|
|Mount hole: 20mm*20mm|
|2OZ*6 Layer Board|
|Lipo Battery: 2-4S|
|Con. Current: 25A|
|top Current: 35A (20S)|
|Betaflight passtrough ready|
|Support oneshot42 oneshot125 Multishot|
|Damped light on|
|Extremely light and more powerful|
|STM32 F303MCU(MPU-6000SPI) + 4in1BLHELI ESC make your Operating feel more stabilly and silky|
|30′ Angle of camera|
|Jaw-dropping flight performance|
|Acro mode / Air mode /Angle mode support|
|Radio Stick to control PID Tunes|
|BLHELI pass-through ready|
|Telemetry RSSI Output ready|
|Weight Only 99g(include battery)|
|XR396 4IN1 ESC Supermin Size 27*27,Max Current 140A, Conjunction with PBF3 EVO Use 160-250MM drone.|
|1. BNF receiver option:|
|Compatible Frsky SBUS receiver|
|Compatible Flysky 8CH AFHDS2A receiver|
|Compatible Specktrum DSM2/For dsm x receiver|
|1). Frsky Receiver compatible with FRSKY ACCST, X9D(Plus)DJT/DFT/DHT|
|2). Flysky Receiver compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F.|
|3). DSM2/For dsm x Receiver compatible wiht Satellite receiver.|
|1 x HGLRC XJB-75 Frame kit|
|1 x HGLRC PBF3-EVO Betaflight F3|
|1 x Frsky/For dsm x/Flysky AFHDS2A/WFLY (optional)|
|4 x HGLRC FLAME 1104 7500KV brushless motor|
|1 x HGLRC XR396 25A BLHELI 4 in 1 ESC|
|4 x R2030 4-blades propeller|
|1 x 600TVL HD CMOS 1/4 inch camera|
|1 x 5.8g 0/25/50/200MW 40CH NTSC/PAL video transmitter|
|1 x HGLRC 11.1V 550mah 35C lipo battery|
This PBF3 flight control DSHOT version, due to the official version of the upgrade BF3.10, open the DSHOT signal mode will occupy S1, S4 signal port.
Therefore, the corresponding flight control hardware S5, S6 to drive S1, S4 motor. Factory default Set the brush BF3.15 firmware and CLI command to replace S1-S5, S4-S6. If you upgrade the BF firmware, simply enter the following command in the BF ground station CLI interface to save the restart. The same firmware does not need to be set.
resource MOTOR 5 none
resource MOTOR 6 none
resource MOTOR 1 A01
resource MOTOR 4 A02
