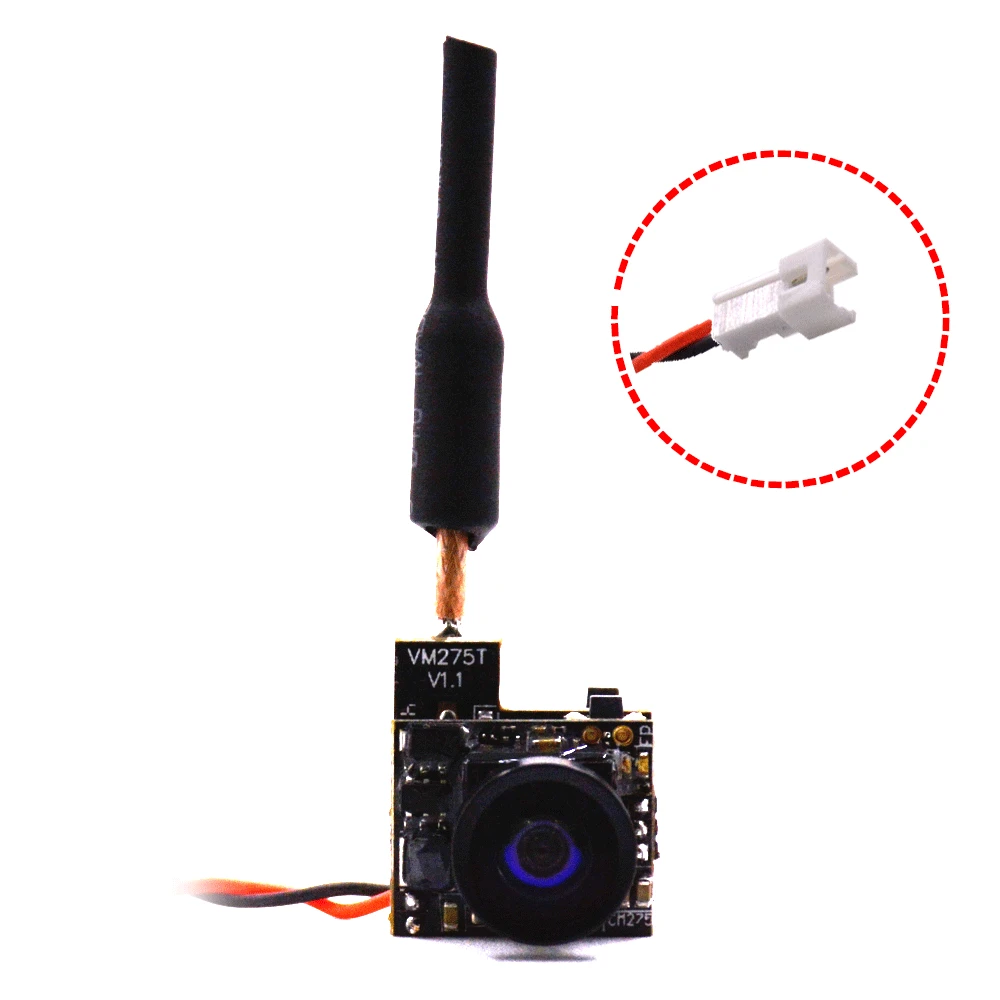

LHI FPV AIO Camera Tiny Whoop 5.8GHz 40CH 25mW Transmitter For Micro Drone&Quadcopter

80 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 32.85 / piece
Click to view offer
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

LHI FPV AIO Camera Tiny Whoop 5.8GHz 40CH 25mW Transmitter For Micro Drone&Quadcopter

specification:

output power: 25 MWFPV Micro Camera 5.8 G 40CH 25 MW Transmitter
Power supply voltage: 2.9-5.5 In
size: 47 * 14.8 * 12.5 mm
Weight: 3.6 g
Antenna: Dipole Antenna exclusive-pin
power consumption: 200 ~ 215MA5V DCIN
Frequency: 5.8 GHz bands 5 to 40 channels, with Raceband: 5362 ~ 5945 MHz
Field of view: 120 °
Working temperature: -10? ~ + 60?
ambient temperature: 25?
channel SEL: Touch switch
Canal Point: CH1 ~ CH8 indication Channel with 8 LEDs and from A to F frequency band specified with 6 LEDs
Modulation type: FM
transmission power: 13 ± 1dBm
frequency control: PLL
all harmonics: Max-50dBm
Frequency stability: ± 100 kHz (Typ.)
Frequency accuracy: ± 200 kHz (Typ.)
Channel Error Carrier: db
Antenna Port: 50 O
SENSOR: PAL: 720X540 / NTSC: 640X480 1/4 “
ANGEL LENS: H: 120 ° / V: 100 °
Base-band interface: (P1.27 * 2)
Profile dimensions: 14.5 mm * 12.2 mm + 14.5 mm * 12 mm
transmission frequency
: Ch1: 5740 MHz Ch2: 5760 MHz Ch3: 5780 MHz Ch4: 5800 MHz
Ch5: Ch6 5820 MHz 5840 MHz Ch7: Ch8 5860 MHz 5880 MHz
B: Ch1: 5705 MHz Ch2: 5685 MHz Ch3: 5665 MHz Ch4: 5645 MHz ‘
Ch5: Ch6 5885 MHz 5905 MHz Ch7: Ch8 5925 MHz 5945 MHz
C: Ch1: 5865 MHz Ch2: 5845 MHz Ch3: 5825 MHz Ch4: 5805 MHz
Ch5: Ch6 5785 MHz 5765 MHz Ch7: Ch8 5745 MHz 5725 MHz
D: Ch1: 5658 MHz Ch2: 5695 MHz Ch3: 5732 MHz Ch4: 5769 MHz
Ch5: Ch6 5806 MHz 5843 MHz Ch7: Ch8 5880 MHz 5917 MHz
E: Ch1: 5733 MHz Ch2: 5752 MHz Ch3: 5771 MHz Ch4: 5790 MHz
Ch5: Ch6 5809 MHz 5828 MHz Ch7: Ch8 5847 MHz 5866 MHz
F: Ch1: 5362 MHz Ch2: 5399 MHz Ch3: 5436 MHz Ch4: 5473 MHz
Ch5: Ch6 5510 MHz 5547 MHz Ch7: Ch8 5584 MHz 5621 MHz

Package including
1 * Micro AIO FPV Camera
1 * Micro JST 1.25 to 2 Pin Cable Waffles
