Intel Atom D525 4*Intel 82583V Gigabit Ethernet Dual Core Firewall Motherboard Network Security Mainboard

100 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 112.00 / piece
Click to view offer
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

4*Intel 82583V Gigabit Ethernet Dual Core Firewall Motherboard Network Security Mainboard

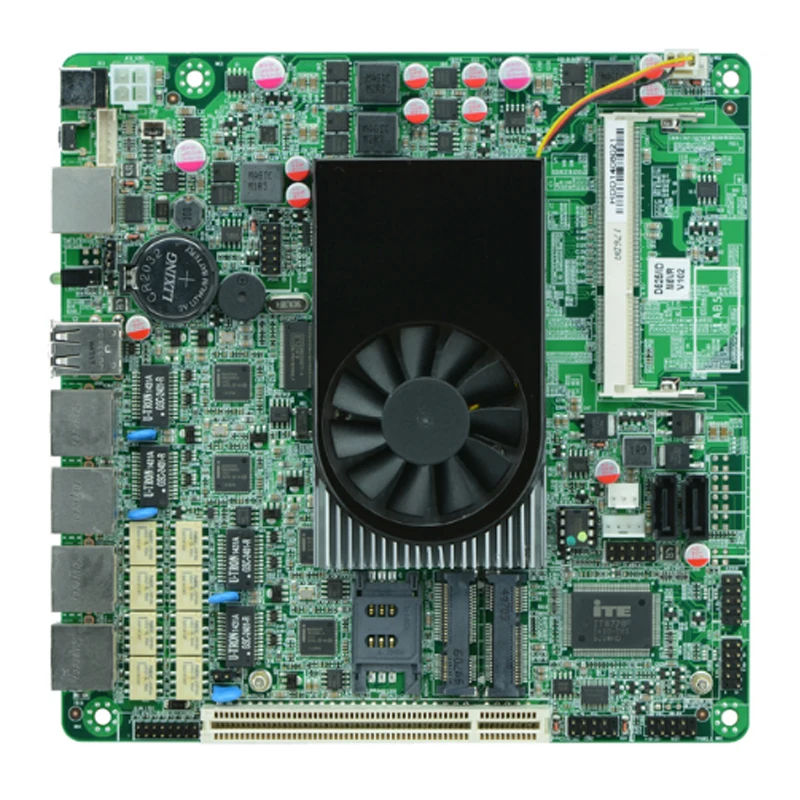

1. front view 2.IO front view

3. Integrated four Intel 82583V Gigabit LAN chip supports a set BYPASS function supports Wake on LAN / PXE function support WIFI / 3G / SSD / 6 USB / 2 x COM M5V_B VER: 1.1 side view

It has two SATA / 1 x PCI slot on the motherboard power supply DC12V

Model NO. ITX-M5V_B VER:1.1
CPU Intel Atom dual-core D525 Processor(1.8GHz)
Chipset Intel® ICH8M Chipset
Memory 1* SO DDRIII 1066/800MHz, Max. up to 2GB
Graphics Intel GMA3150 Graphics
Expansion Slots 1* PCI
1* Mini PCIE(support 3G/ WIFI module )
LAN 4* Intel 82583V 10/100/1000Mbps Ethernet,Support Wake-on-LAN function
LAN1-LAN2 Support Bypass
Storage 2* SATAII(SATA2 and SSD with a second election)
1*mSATA , Support SSD /USB WIFI
Rear I/O 1* 12V DC_JACK input
1* POWER
1* COM(CISCO standard interface)
1* LED1(POWERLED/HDDLED)
2* USB 2.0
4* RJ-45 LAN
Internal I/O 1* JVGA (2*5pin)
1* LAN_LED (2*8pin)
1* COM
4* USB 2.0
1* FP1 (2*5pin Front panel buttons and LED connected)
1* ATX_12V (Can be used as input and output 12V power connector)
1* PS/2
1* PWROUT (Hard drive power connector)
1*SIM
Fan interface 1* CPUFAN/SYSFAN Fan interface(3pin)
GPIO 1* GPIO (Support 4-way GPIO function)
BIOS AMI 8MB DPI Flash ROM
Watchdog Support hardware reset function (L256, 0~255 seconds)
Power Input DC_12V Single power supply
Operating Temp. -10°C~60°C
Storage Temp. -20°C~70°C
Humidity 5%-95%(relative humidity; non-condensing)
Dimension 170mm x 170mm
