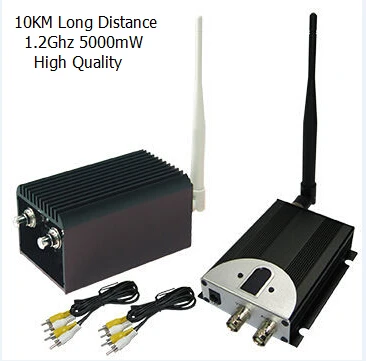

High Quality 1.2GHz 10KM FPV Long Distance Wireless Video Transmitter with 5000mW, 8 channels Camera Drone Accessories

60 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 486.00 / piece
Click to view offer
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Description: KP-A5 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 5~10KM or so, if the raising of the high gain directional antenna, increased to 15KM away. If you use it for UAV, The transmit distance can reach about 60km from air to ground. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible. It’s not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment. Features:

  • wireless video transmitters make wireless video easy and inexpensive
  • Wireless transmission: no need to set up communications cable
  • Responsive, timely, send and receive real-time transmission
  • Using FM mode, anti-interference ability, good image quality
  • Highly integrated, stable and reliable transmission distance
  • Small size, light weight, easy to carry, good installation
  • Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
  • DC power supply, easy to use.

Specification:

Transmit Power 5000mW
Frequency 0.9G/1.2G/1.3G
Number of channels 4CHs/8CHs Optional
Current 600mA
Voltage DC 12V
Video Output 1 Vp-p(FM)
Audio Output 1 Vp-p(FM)
Audio Carrier Ware 5.5M 6.0M
Distance (Open environment) 5~10KM
Overall Configuration Transmitter, receiver, AV cable, power supply, antenna
Temperature -10°C~ +50°C
Transmitter Weight 388g
Receiver Weight 120g
Dimensions (L * W * H) Transmitter:111*67*60mm. Receiver:116*80*21mm
Box size (L * W * H) 245*160*65mm

Package:

  • Transmitter
  • 12 channel Receiver
  • Antenna
  • Video cable and transmitter connecting cable
  • Power adapters for transmitter, we don’t provide power adapter for Receiver, please use 12V,1A adapter.

Application: If you are seeking an equipment that can transmit the audio and video to a long distance without cable, for example the villa, small lake, bridge or some other open areas, this transmitter system is the right one you need This equipment will cover a long distance in the open area around 10Km But when there are obstacle between the transmitter and receiver, it will be decided case by case This unit is the professional one and the signal is very strong in 1.2G series that can be used to cover the long distance where need strong signal and the industrial project. Installing: A. The line has 5 plugs for connecting transmitter, camera and power supply One of the line’s points connecting to transmitter, another has 4 plugs (red, yellow, white, black) Red plug connect DC 12V/1000mA, can also connect battery White and yellow plug connect to camera’s audio and video apart And black one connects camera’s power input jack B. Push the control button, can change the channel of receiver Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model Then push it again, can replay The function can be able to lock channel, so as to avoid mistaking operation C. Set the same channel with transmitter and receiver
