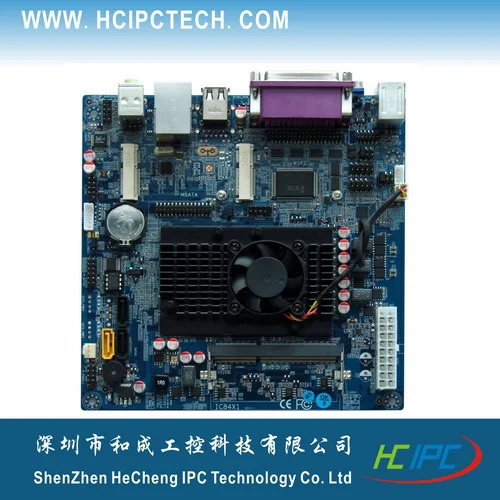

HCIPC M424-1 ITX-HCM10X61B,C1037 Mini ITX Motherboard,6COM,2Mini PCIE,3SATA,GPIO,SPDIF,6USB,1GLAN,1DDR3,VGA+HDMI,LPT,ATX PWR

100 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 99.00 / piece
Click to view offer
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

ShenZhen HeCheng IPC Technology Co. Ltd (Abbreviation: HC IPC) is an high-tech company that integrated the R&D, products design. Sales and service for industrial special computer range products. The products involve Embedded Industrial Motherboard, Embedded System, Industrial Chassis, Integrated Workstation , Industrial Tablet PC, The Network Security System , RIAD, Industrial CPU, Industrial Power Supply and Industrial Computer Accessories, etc. The products are widely applied to Industrial Automation, Communication, Electricity, Network Security, Intelligent Transportation, Video Monitoring, Health Care, Military Industry & Spaceflight, Self-Service Terminal, Data Storage, Digital Signage, Car PC and 3C application, etc.

Our company website is www.hcipctech.com.

Warning Notice:

1.When you order, please confirm with stock first, the real stock according everyday’s selling, everyday are different.

2.If you order big quantity, we will offer discount, please free to contact with us.

3.We also accept OEM/ODM Service, if you have such requirement, welcome free to talk with us.

4.If you order Motherboards, chassis and CPU. Etc for one system, then we will offer Free assembly, and charge shipping cost only for one system, please contact us to reduce the shipping cost.

5.We offer Free collect service for customers to save shipping cost: it is mean if any customers order other goods from China, it could delivery to us, we could help to put order together to delivery to save cost for customers.

HCIPC M424-1 ITX-HCM10X61B,Mini ITX Celeron C1037 Embedded Motherboard,6COM,2Mini

PCIE,2SATA2.0,1SATA3.0,GPIO,SPDIF,6USB,1Giga LAN,1SO DIMM DDR3,VGA+HDMI,LPT,ATX PowerSupply,Mini ITX

Motherboard,ITX Mainboard,Embedded Industrial Motherboard

Detail Specification

CPU

Intel Celeron C1037U 1.8Ghz Low consumption processor( TDP13W,667Mhz)

Chipset

Single chip: Intel NM70

Memory

1 x SODIMM DDR3 1333/1066MHz DIMM, Max support 8GB

Graphics

Onboard Intel GMA 3150, support DirectX 9.0C

Audio

Onboard Realtek ALC662 HD audio chip

LAN

Onboard Realtek 8111E, 10/100/1000M lan support PXE.

Storage Interface

2x SATA2.0 Hard disk connector,1x SATA3.0 Hard disk connector

Expansion Slots

2x Mini PCIE slot

USB

Support 6 PCS USB 2.0 Ports (2 pcs need extend)

Internal

I/O Connectors

1 x 20-pin ATX main power supply

3 x SATA headers

1 x CPU fan header

1 x front panel header

1 x F_Audio header

1 x USB 2.0 header

1 x Clear CMOS header

6 x COM headers

1 x VGA_H header

1 x 24bit LVDS header

1 x LVDS_INVERT header

Back Panel

Connectors

1 x VGA port

1 x PS2 mouse and keyboard ports

1X HDMI port

4 x USB 2.0 port

1x LPT

1 x RJ-45 ports

1 x audio 2 Jacks( Line-out, MIC or Line-in)

I/O Controller

1 x IT8782F

BIOS

AMI Authorized 32Mbit BIOS process, support RPL/PXE

Form Factor

Mini-ITX 170 x 170mm

Work Environmental

Working conditional temperature

-15~55°C

Working conditional humidity

10%~80% relative humidity, non-condensing

Products Using Range

ATM, Kiosk, Digital Signage and Living Room PC

Products’ Warranty:

1.All our shop’s Products offered One Year +1month Warranty since delivery date.

2.All our products we will testing for twice before delivery, to avoid any small thing happen to cause unconvinced for customers.

3.When your received the goods, if you got any problem or need any technical support, if we aren’t online, please mail to us, we will answer you in 24hours, except weekend.

We will offer our best service and best quality products for all our customers, and any support from customers, we highly appreciate, billions thanks.
