HCIPC M4231 2 ITX HCM25D61E Atom D2550 Mini ITX font b Motherboard b font 6COM 1Mini

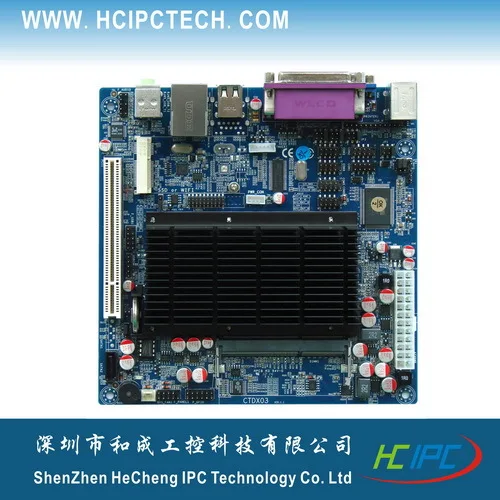

HCIPC M4231-2 ITX-HCM25D61E,Atom D2550 Mini ITX Motherboard,6COM,1Mini PCIE,2SATA,1GigaLAN,PCI,LVDS+VGA+HDMI.LPT,1DDR3,ATX

80 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 99.00 / piece
Click to view offer
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


ShenZhen HeCheng IPC Technology Co. Ltd (Abbreviation: HC IPC) is an high-tech company that integrated the R&D, products design. Sales and service for industrial special computer range products. The products involve Embedded Industrial Motherboard, Embedded System, Industrial Chassis, Integrated Workstation , Industrial Tablet PC, The Network Security System , RIAD, Industrial CPU, Industrial Power Supply and Industrial Computer Accessories, etc. The products are widely applied to Industrial Automation, Communication, Electricity, Network Security, Intelligent Transportation, Video Monitoring, Health Care, Military Industry & Spaceflight, Self-Service Terminal, Data Storage, Digital Signage, Car PC and 3C application, etc.

Warning Notice:

1.When you order, please confirm with stock first, the real stock according everyday’s selling, everyday are different.

2.If you order big quantity, we will offer discount, please free to contact with us.

3.We also accept OEM/ODM Service, if you have such requirement, welcome free to talk with us.

4.If you order Motherboards, chassis and CPU. Etc for one system, then we will offer Free assembly, and charge shipping cost only for one system, please contact us to reduce the shipping cost.

5.We offer Free collect service for customers to save shipping cost: it is mean if any customers order other goods from China, it could delivery to us, we could help to put order together to delivery to save cost for customers.

HCIPC M4231-2 ITX-HCM25D61E,Intel Atom D2550 Embedded Mini ITX Motherboard,6COM,1Mini PCIE,2SATA,7USB,1Giga LAN,PCI,LVDS+VGA+HDMI.LPT,1SODIMM DDR3,ATX PowerSupply.Mini ITX Motherboard,ITX Mainboard,Embedded Industrial Motherboard

Detail Specification


Intel Atom D2550 1.86Ghz Low consumption processor( TDP13W,667Mhz)


Single chip: Intel NM10


1 x SODIMM DDR3 1333/1066MHz DIMM, Max support 4GB


Onboard Intel GMA3600 support DirectX 9.0C


Onboard Realtek ALC662 HD audio chip


Onboard Realtek 8111E, 10/100/1000M lan support PXE.

Storage Interface

2 x SATA2.0 Hard disk connector

Expansion Slots

1 x PCI slot,1x MINI PCIE slot


Support 7 PCS USB 2.0 Ports (3 pcs need extend)


I/O Connectors

1 x 24-pin ATX main power supply

2 x SATA headers

1 x CPU fan header

1 x front panel header

1 x F_Audio header

2 x USB 2.0 headers

1 x Clear CMOS Header

6 x COM headers

1 x IR header

1x GPIO header

1 x VGA_H header

1 x 24bit LVDS header

1 x LVDS_INVERT header

Back Panel


1 x PS2 mouse and keyboard ports

1 x VGA port

1 x HDMI port

1 x LPT port

4 x USB 2.0 port

1 x RJ-45 ports

1 x audio 2 Jacks( Line-out, MIC or Line-in)

I/O Controller

1 x IT8782F


AMI Authorized 32Mbit BIOS process, support RPL/PXE

Form Factor

Mini-ITX 170 x 170mm

Work Environmental

Working conditional temperature


Working conditional humidity

10%~80% relative humidity, non-condensing

Products Using Range

ATM, Kiosk, Digital Signage and Living Room PC
