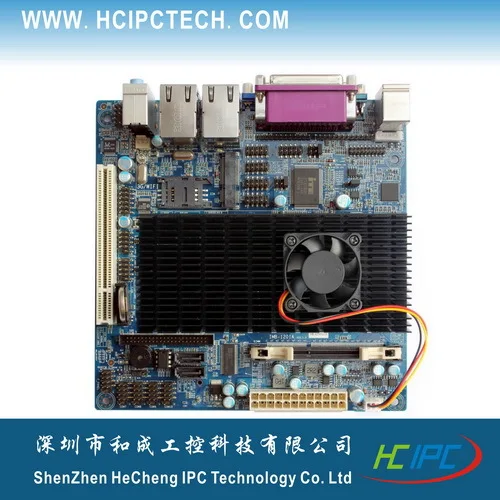

HCIP M425 1 ITX HCM52M1023A Atom D525 Mini ITX font b Motherboard b font 1 PCI
Click to see details
HCIP M425 1 ITX HCM52M1023A Atom D525 Mini ITX font b Motherboard b font 1 PCI


80 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 125.00 / piece
Click to view offer
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


ShenZhen HeCheng IPC Technology Co. Ltd (Abbreviation: HC IPC) is an high-tech company that integrated the R&D, products design. Sales and service for industrial special computer range products. The products involve Embedded Industrial Motherboard, Embedded System, Industrial Chassis, Integrated Workstation , Industrial Tablet PC, The Network Security System , RIAD, Industrial CPU, Industrial Power Supply and Industrial Computer Accessories, etc. The products are widely applied to Industrial Automation, Communication, Electricity, Network Security, Intelligent Transportation, Video Monitoring, Health Care, Military Industry & Spaceflight, Self-Service Terminal, Data Storage, Digital Signage, Car PC and 3C application, etc.

Warning Notice:

1.When you order, please confirm with stock first, the real stock according everyday’s selling, everyday are different.

2.If you order big quantity, we will offer discount, please free to contact with us.

3.We also accept OEM/ODM Service, if you have such requirement, welcome free to talk with us.

4.If you order Motherboards, chassis and CPU. Etc for one system, then we will offer Free assembly, and charge shipping cost only for one system, please contact us to reduce the shipping cost.

5.We offer Free collect service for customers to save shipping cost: it is mean if any customers order other goods from China, it could delivery to us, we could help to put order together to delivery to save cost for customers.

HCIP 2046-1 ITX-HCM52M1023A,Intel Atom D525 Embedded Mini ITX Motherboard,PCI,10COM,GPIO,1Mini


Motherboard,ITX Mainboard,Embedded Industrial Motherboard

Detail Specification


Intel® AtomTM D525 Dual-Core 1.8GHz CPU

System Chipset

Intel® ICH8-M


AMI 32Mbit Flash ROM BIOS

I/O Chip



1*204-pin SODIMM Socket Supports Up to 4GB DDR3 800/1066/1333* SDRAM


One Mini PCI-E Socket

Watch Dog Timer

Reset: 1 sec~255 min. and 1 sec. or 1min./step


1×PCI, 2×Mini PCI-E

SmartFan Control

Yes (Need 4 pin thermostat fan.)


8×USB 2.0 ports


8-bit General Purpose I/0 for DI and DO


Intel® Pineview Integrated ,GMA3150+CH 7036

Display Memory

Intel® DVMT supports 512MB video memory


VGA Mode: Up to 2048×1536 @ 60Hz

Dual Display



VGA1: Intel® GMA 3150 original

VGA2: Conversion by CH7036 Chip


Realtek ALC662 Supports 5.1-CH Audio

Audio Interface

Mic-in, Line-out, Line-in


2*Realtek 8111E Gigabit Ethernet

Back Panel I/O Port

1×PS/2 Keyboard / 1×PS/2 Mouse / 1×Parallel port / 1×Serial Port

1×VGA port / 4×USB 2.0 / 2×LAN RJ45 port ,3Audio Jacks

Internal I/O Connector

1×18/24 bit LLVDS connector

1×Inverter_PWR connector

1×LVDS_PWR jumper

2×VGA connector

1×Front panel audio connector

9×COM port header, 2×COM_PWR jumper

2×USB connectors support additional 4 USB ports

2×SATA connectors

1×IDE 44-pin connector

1×3G SIM socket

1×8bit GPIO(4-in / 4-out)

1×CLR_CMOS jumper

1×System panel connector

1×CPU&SYS Fan connector

1×24-pin ATX Power connector

Operating Temperature

0~60C (32~140F)

Storage Temperature

-40~75C (-40~167F)

Operating Humidity

0~90% Relative Humidity, Non-condensing

Size (L×W)



1.For big quantity with have more discount, please free to contact us. thanks.

2. If the specfication any changes, it will be without any notice; when order, please confirming in advance.

But most of them, it is smae like our description, even update, just small parts. thanks.

Products’ Warranty:

1.All our shop’s Products offered One Year +1month Warranty since delivery date.

2.All our products we will testing for twice before delivery, to avoid any small thing happen to cause unconvinced for customers.

3.When your received the goods, if you got any problem or need any technical support, if we aren’t online, please mail to us, we will answer you in 24hours, except weekend.

We will offer our best service and best quality products for all our customers, and any support from customers, we highly appreciate, billions thanks.
