GB210 Airframe Carbon Fiber 210mm Wheelbase Multirotor DIY Frame Kit Racing Drone 30A ESC F3 10DOF Flight Controller

60 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  $ 120.74 / piece
Sale Price:  $ 114.70 / piece
Click to view offer
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

GB210 Airframe Carbon Fiber 210mm Wheelbase Multirotor DIY Frame Kit Racing Drone 30A ESC F3 10DOF Flight Controller

Main Features:
Len’s seat pitch ( support CCD, CMOS camera board aircraft )
Upper body version with a plurality of antenna holes to facilitate fixed antenna
Body with 1.5mm 3K full carbon fiber
3mm 3K full carbon arm
Rational layout, easy to install
ESC can be installed arm, it can also be installed in the fuselage
Compatible AOMWAY 700 line camera mounts

Specifications:
210mm airframe specifications:
Diagonal wheelbase: 210mm
Rack weight: 80g
Support motor: 1306 3000KV / 1804 2300KV / 1806 2300KV ( 1806 / 4045 recommend inch paddle )
Support propeller: 4 or 5 inch
Color: black
Mounting dimension: 200 x 165 x 62 mm
Net weight: 91g

Acro SP3 specifications:
10DOF
Panel color: black
Board size: 35 x 35 x 8 mm / 1.4 x 1.4 x 0.3 inch
Net weight: 23g
Package weight: 29g

EMAX RS2205 brushless motor specifications:
Weight: approx. 30g with wires
Wire AWG: 20AWG
Stator diameter: 22mm
Stator height: 5mm
Shaft diameter: 3mm
Configuration: 12N14P
Motor diameter: 27.9mm
Motor height: 31.7mm
Prop adapter shaft thread: M5
Input voltage: 3 – 4 S ( 12.6 – 16.8 V )
KV2300 with HQ5045 BN max. thrust: 1024g

30A mini ONESHOT ESC specifications:
BEC: none
Current: 30A
Burst current: 35A up to 10 seconds
Bootloader: BLheli
MCU: SiLabs
Firmware: BLheli 14, OneShot ready
Battery: 2 – 6 S LiPo
Size: 35 x 17 mm
Weight: 11g with wires

PCB ( 5 – 12 V ) specifications:
2oz copper and 4-layers PCB
Solder bridges of various voltage for camera and VTX
DC / DC synchronous buck regulator, efficiency is up to 95 percent
TVS( transient voltage suppressor ) protection for DC / DC chip
Dimensions: 36 x 36 mm
Weight: 6g
Mounting holes: 30.5mm square spacing
12.4 – 16.8 V, 1300 – 1800 mAh ( 3 – 4 S ) battery ( not included )

Type: Frame Kit Package weight: 0.770 kg
Product size (L x W x H): 20.00 x 16.50 x 6.20 cm / 7.87 x 6.5 x 2.44 inches

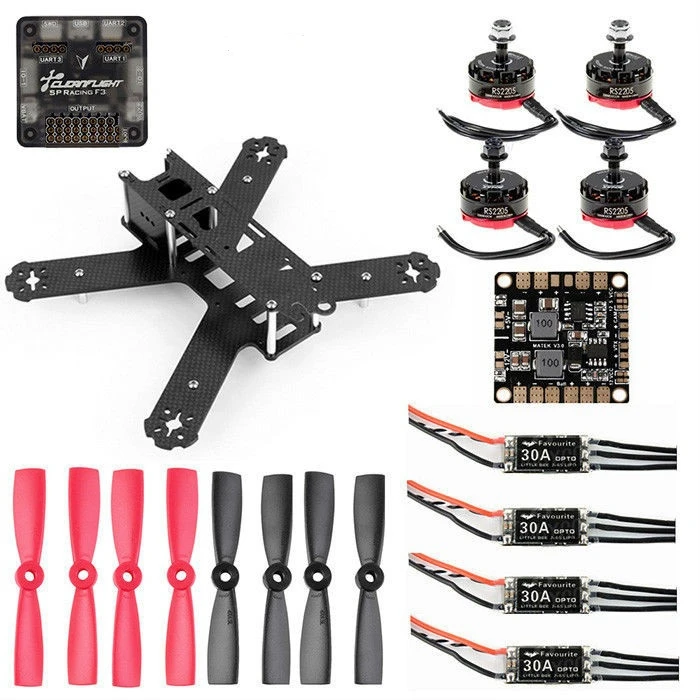

Package size (L x W x H): 28.00 x 18.00 x 8.00 cm / 11.02 x 7.09 x 3.15 inches Package Contents: 1 x Quadcopter Frame, 4 x Motor, 4 x ESC, 4 x CW Propeller, 4 x CCW Propeller, 1 x F3 Flight Controller, 1 x Power Distribution Board, 1 x Accessory Set Product Safety Disclaimer:
