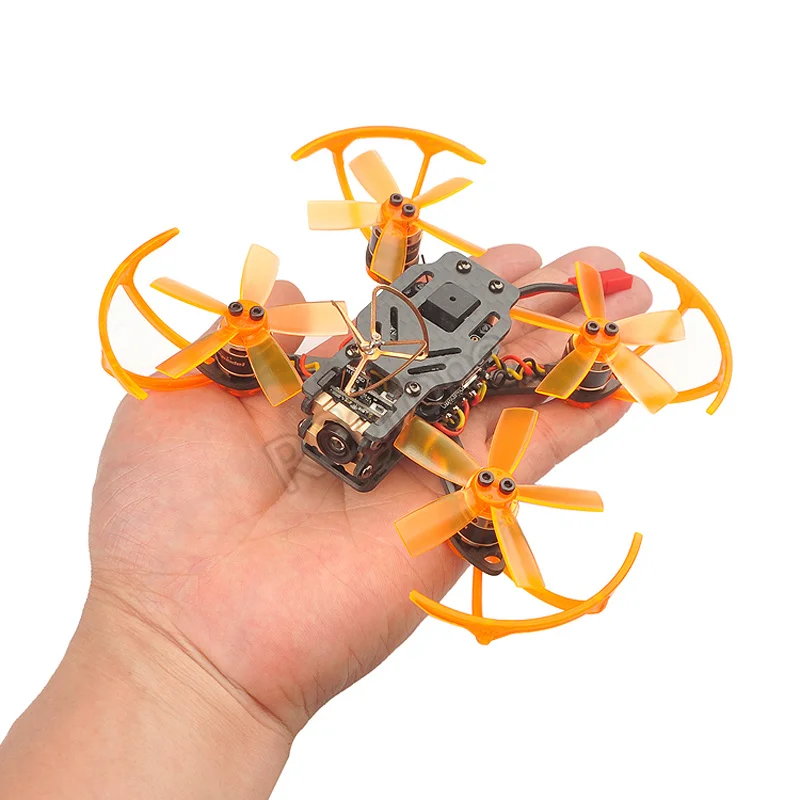

Specifications: Brand Name: Happymodel Item Name:Toad 90 Micro FPV RACING DRONES BNF Size:115mm*115mm*50mm Weight: 69g( battery not include) Flight controller: Betaflight F3 Flight controller built-in OSD Motor: Happymodel 1104 KV7500 brushless motor Propeller: 50mm 5-blades propeller Camera: 600TVL HD CMOS 1/4inch VTX: 5.8g 25MW 48CH NTSC/PAL Video transmitter Battery: 7.4V 450mah 80C lipo battery (not included) OSD: Betaflight OSD Firmware of Flight controller :Betaflight 3.1 Flight time : 3-4minutes Buzzer Ready BNF version Receiver Option: -Frsky D8 modee SBUS receiver (RSSI ready) -Flysky 8ch AFHDS 2A receiver -Specktrum DSM2/DSMX Compatible receiver Flight controller Specification: -Size:27mm*27mm*5mm -Mount hole: 20mm*20mm -Processor: STM32 F303 MCU -Sensor: SPI Sensor MPU6000 -Built-in Betaflight OSD ( Batt voltage, RSSI , Artificial Horizon , Fly mode , -Flytime, Craft name etz.) -Firmware version: Betaflight 3.1 Dshot ready -Target: Omnibus ESC specification: -Size:27mm*27mm*5mm -Mount hole: 20mm*20mm -Firmware version: BLHELI_S 16.5 – BB2, 48MHZ Chip -Lipo Battery: 1-2S -Con. Current: 10A -Peak Current: 15A (10S) -BEC: 5V at 0.1A -Programming: YES -Betaflight passtrough ready -Dshot600 ready(Default) -Support oneshot42 oneshot125 Multishot Dshot -Damped light on Features: -Extremely light and more powerful -STM32 F303MCU + BLHELI_S ESC make your Operating feel more stabilly and silky – Adjustable Angle of Camera – Jaw-dropping flight performance – Betaflight support -Acro mode / Air mode /Angle mode support -Built-in OSD(Using F3 MCU controls OSD over SPI bus in DMA mode) -OSD Configuration has been include in BETAFLIGHT GUI -Radio Stick to control PID Tunes -BLEHELI_S pass-through ready – Telemetry RSSI Output ready Package include: 1 x Happymodel Toad 90 Frame kit 1 x Betaflight F3 6DOF flight controller build-in OSD 1 x Frsky/DSMX/Flysky AFHDS2A Receiver(optional) 4 x Happymodel 1104 7500KV brushless motor 1 x BS410 10A BLHELI_S 16.5 2-3S 4 in 1 ESC Dshot600 4 x 50mm 5-blades propeller CW 4 x 50mm 5-blades propeller CCW 1 x 600TVL HD CMOS 1/4 inch camera 1 x 5.8g 25MW 48CH NTSC/PAL VTX 1 x Buzzer 4 x Propeller guards * Battery not included: 7.4V 450mah 80C lipo battery
0 out of 5 (0 Ratings)
5 Stars (0)
4 Stars (0)
3 Stars (0)
2 Stars (0)
1 Star (0)
|Shipping Company||Shipping Cost||Estimated Delivery Time|
|3 - 7 days|
|3 - 7 days|
|5 - 14 days|
|Post Air Mail||Free Shipping||15 - 45 days|
|Return Policy||If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
|Seller Service||On-time DeliveryIf you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).|
