DIY RC Drone Full Kit 4-Axle S600 Frame PIX 2.4.8 Flight Control flysky FS-i6 Transmitter Motor 40A ESC GPS with Battery Charger

80 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  $ 315.80 / piece
Sale Price:  $ 271.59 / piece
Click to view offer
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


DIY RC Drone Full Kit 4-Axle S600 Frame kit PIX 2.4.8 Flight Control FS-i6 6CH Transmitter ESC Motor GPS with Battery Charger

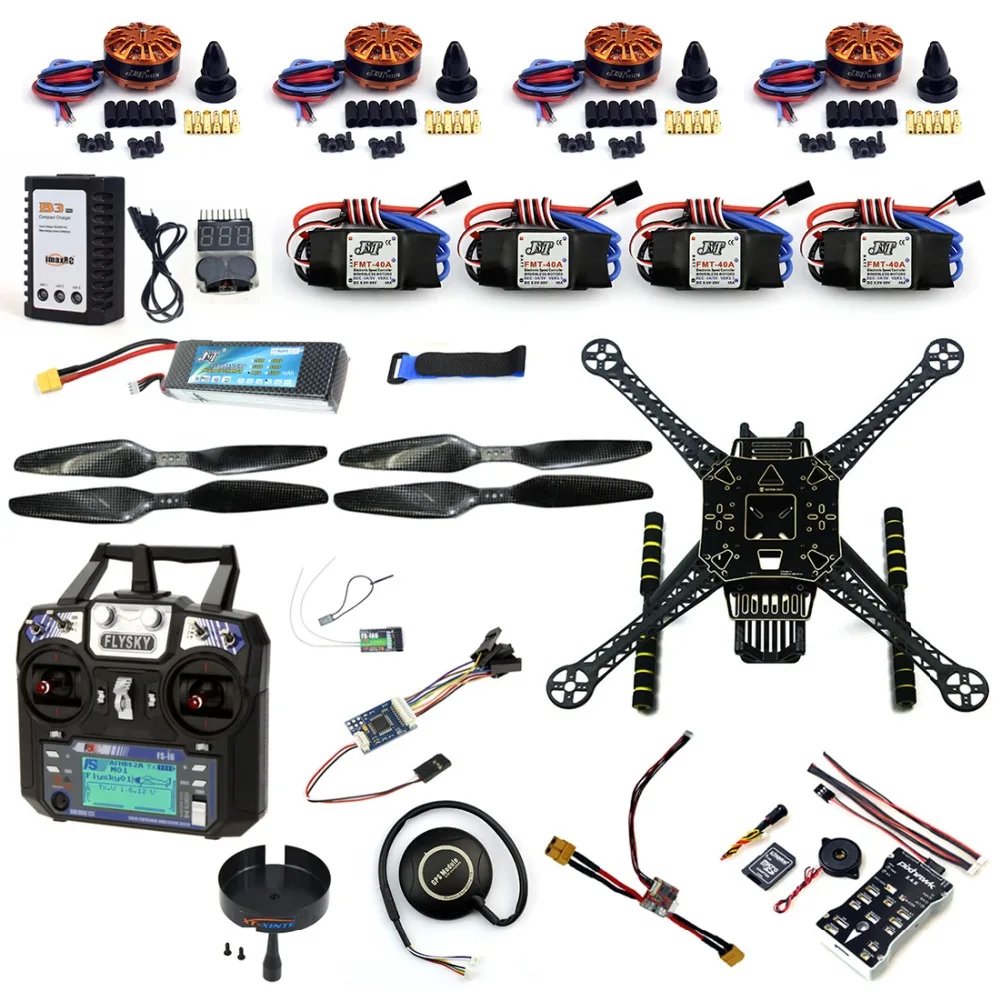

Product Listing :

S600 Super Hard Arm 4-Axis Rack Quadcopter Frame Kit with Landing Gear Skid *1

JMT 40A Brushless ESC Speed Controller *4

HYD 3508 700KV 198W Disc Motor *4

Three-hole High Quality Carbon Fiber 15×5.5 1555 Propeller CW CCW Prop * 2pairs

PX4 PIX 2.4.8 32 Bit Flight Controller Integrate PX4FMU PX4IO Safety Switch Buzzer 4G SD*1

UBLOX NEO-7M 7M GPS Module with Compass *1

CNC GPS Anti-interference Antenna Mount Holder Stent Case*1

8 Channel PPM Encoder *1

APM2.6 2.5 2.52 Power Module Current Module APM with 5.3V DC BEC *1

Thick Gold Plated 3.5mm Bullet Connector ( banana plug ) *1

Hook and & Loop Fastening Tape *1

Flysky FS-i6 6CH 2.4G AFHDS 2A LCD Transmitter iA6 Receiver Mode 2/1 Radio System *1

IMAX RC B3 Pro Compact Balance Charger *1

JMT 11.1V 4400MAH 30C 3S1P xt60 Plug *1

Lipo Battery Voltage Tester Volt Meter Indicator Checker Dual Speaker 1S-8S Low Voltage Buzzer Alarm *1

Frame Kit Specifications:

Wheelbase: 600mm Tripod height: 250mm Maximum available paddle: 15 inch Weight: 860g Upper and lower center plate middle height: 36mm

Pix 2.4.8 Spacifications :


Open source products, once sold, no return, if quality problems, Please return for repair . Does not provide one to one support. Buy carefully!

If you are using a PWM receiver, please ready a PWM / PPM converter.

– The board integrates with PX4FMU+PX4IO
– Pixhawk is with new 32 bit chip and sensor technology

– Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
– 14* PWM/ actuator output;
– Bus interface (UART, I2C, SPI, CAN);
– Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
– Provide automatic and manual mode;
– Provide redundant power input and fault transfer function;
– Color LED lamp;
– Multi tone buzzer interface;
– Micro SD to record flight data;

– 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
– Main frequency: 256K, 168MHZ RAM
– 32 bit STM32F103 backup co processor

– L3GD20 3 axis digital 16 bit gyroscope
– LSM303D 3 axis 14 bit accelerometer /magnetometer
– MPU6000 6 axis accelerometer / magnetometer
– MS5611 high precision barometer

– 5* UART, 1*compatible high voltage, 2*hardware flow control
– 2* CAN
– DSM/DSM2/DSM-X satellite receiver compatible input
– Futaba SBUS compatible input and output
– PPM signal input
– RSSI (PWM or voltage) input
– I2C
– 3.3 and 6.6VADC input
– External USB MICRO interface
