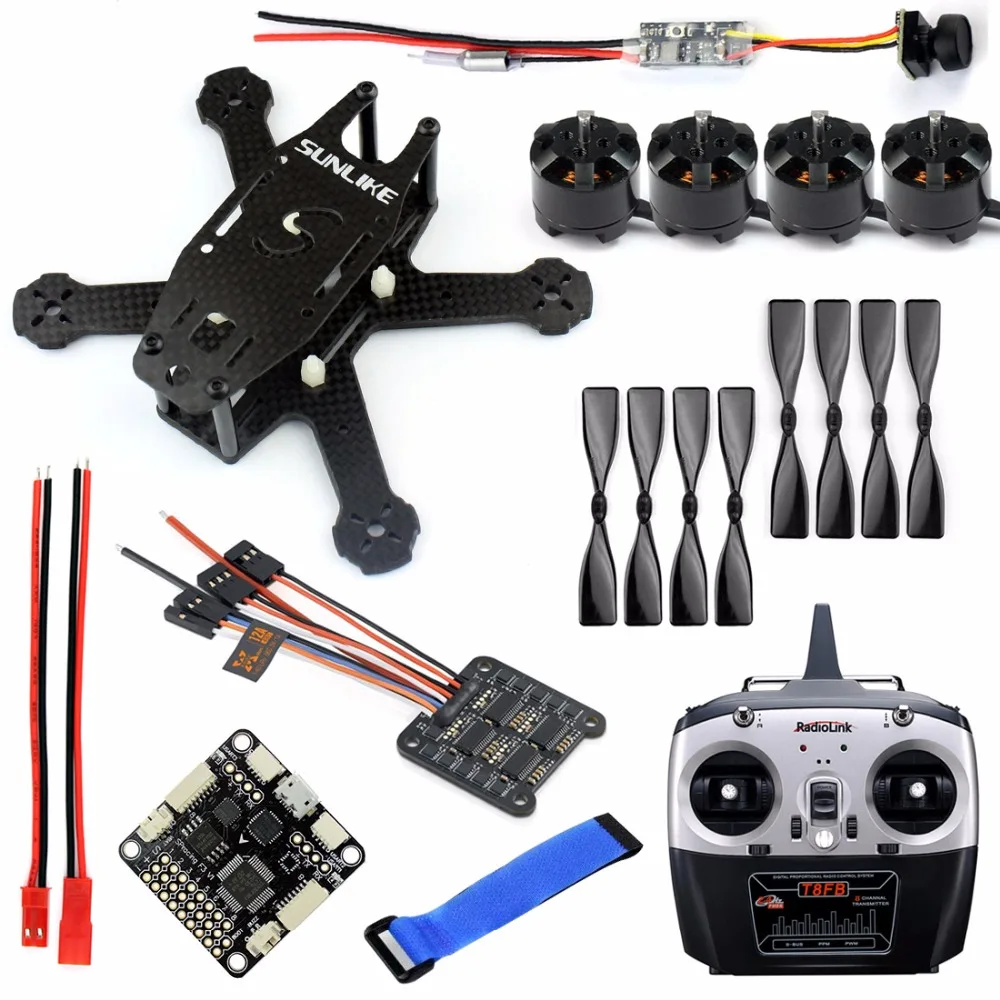

DIY Mini Drone with NAZE32 /CC3D F3 Flight Controller 130mm Integrated Frame Kit Remote Control Motor ESC for RC 250 Racer Quad Package include : With Naze Pro FC Kit : S130A Mini 130mm Integrated Carbon Fiber Frame Kit X1 Mini 1104 4000KV Brushless Motor X4 Hobbywing Xrotor 12A 4IN1 1-4S Micro Brushless ESC X1 4Pairs Tarot 3 Inch Square Propellers CW CCW 3inch Black Props X1 Upgrade NAZE32 Acro Pro SP Racing F3 Flight Controller Deluxe 6/10DOF X1 JST Plug X1 Q25 MINI VTX+CAMERA 25mw 16ch Transmitter 800tvl coms Camera X1 RadioLink T8FB 2.4GHz 8ch RC Transmitter R8EH Receiver Combo Remote Rontrol X1 5X Hook & Loop Fastening Tape X1 With CC3D FC Kit package Listing : S130A Mini 130mm Integrated Carbon Fiber Frame Kit X1 Mini 1104 4000KV Brushless Motor X4 Hobbywing Xrotor 12A 4IN1 1-4S Micro Brushless ESC X1 4Pairs Tarot 3 Inch Square Propellers CW CCW 3inch Black Props X 1 32 Bits Processor With Straight Needle VZHR3104 / Curved Needle VZHR3110 Flight Control X1 JST Plug X 1 Q25 MINI VTX+CAMERA 25mw 16ch Transmitter 800tvl coms Camera X 1 RadioLink T8FB 2.4GHz 8ch RC Transmitter R8EH Receiver Combo Remote Rontrol X 1 5X Hook & Loop Fastening Tape X 1 Features of Frame kit : – Small size – Light weight – Reasonable layout,convenient to install – 130mm wheelbase – 3K carbon fiber – Import material and delicate craft – Corrsion endurable – Strong enough to against impact and shock Flight Control of Naze 32 : Features 1. No compromise I/O. Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors – all at the same time! 2. On-board high-capacity black box flight log recorder – optimize your tuning and see the results of your setup without guesswork ( Deluxe). 3. Next-generation STM32 F3 processor with hardware floating point unit for efficient flight calculations and faster ARM-Cortex M4 core. 4. Stackable design – perfect for integrating with OSDs and power distribution boards. 5. 16 PWM I/O lines for ESCs, Servos and legacy receivers. 8 available on standard pin headers. 8 via side mounted connectors. 6. Full support for OneShot ESCs for easy PID tuning and a sharper response. 7. Supports SBus, SumH, SumD, 11024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in). 8. Dedicated output for programmable LEDs – great for orientation, racing and night flying. 9. Dedicated I2C port for connection of OLED display without needing flight battery. 10. Battery monitoring ports for voltage and current. 11. Sonar support for precision low-altitude hold. 12. Buzzer port for audible warnings and notifications. 13. Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader. 14. Symmetrical design for a super tidy wiring. 15. Wire up using pin headers, JST-SH sockets or solder pads. Use either right-angled or straight pin-headers. 16. Barometer mounted on the bottom of the board for easy wind isolation. 17. Loop times up to ~2x as fast as previous-generation STM32F1 based boards. 18. Configuration of the flight controller via a cross-platform GUI (Windows/OSX/Linux). 19. Supports a variety of aircraft, tricopters, quadcopters, hexacopters, octocopters, planes and more. 20. Available in Acro and Deluxe versions. Variations Acro: Standard model for racing/acro flying. Deluxe: Additional sensors for altitude and direction. Software The SPRacingF3 runs the open-source Cleanflight flight control (FC) software which has an ever-growing community of friendly developers and users. Being open-source means that you too can contribute to the system. Cleanflight comes with a detailed manual that is reviewed and maintained by the Cleanflight developers and community. No more out-of-date wiki pages and second-hand information. Ensure you reference the manual that is appropriate to your firmware version. History The hardware was designed by the lead developer of Cleanflight, Dominic Clifton, to be more capable than the STM32F1-based boards after hearing feedback from the Cleanflight users, contributors and top-pilots. WARNINGS GENERAL ADVICE Follow the advice below for best performance and long-life of your flight controller: 1. Apply resin/glue to reinforce JST-SH connectors – helps if you crash your aircraft. 2. Using an enclosure/box for the flight-controller is recommended. 3. Install open-cell foam under the pressure sensor – sandwich some between the FC and frame. 4. Route motor/battery wires as far away from the compass sensor (magnetometer) as possible. 5. Only install the BOOT jumper pins if you need them. 6. Using color coded pin headers is recommended (not supplied), especially for VBAT headers. 7. Do everything you can to prevent vibrations reaching the accelerometerro sensor. Flight Control of CC3D : CC3D aircraft flight control system is mainly used in 250 through four axis, is the mainstream of flight control. CC3D flight control using a 32-bit CPU chip, relative calculation using 8-bit APM flight control system is more faster. CC3D flight control using the MPU – 6000 gyroscope, precision is higher.
0 out of 5 (0 Ratings)
5 Stars (0)
4 Stars (0)
3 Stars (0)
2 Stars (0)
1 Star (0)
|Shipping Company||Shipping Cost||Estimated Delivery Time|
|3 - 7 days|
|3 - 7 days|
|5 - 14 days|
|Post Air Mail||Free Shipping||15 - 45 days|
|Return Policy||If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
|Seller Service||On-time DeliveryIf you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).|
