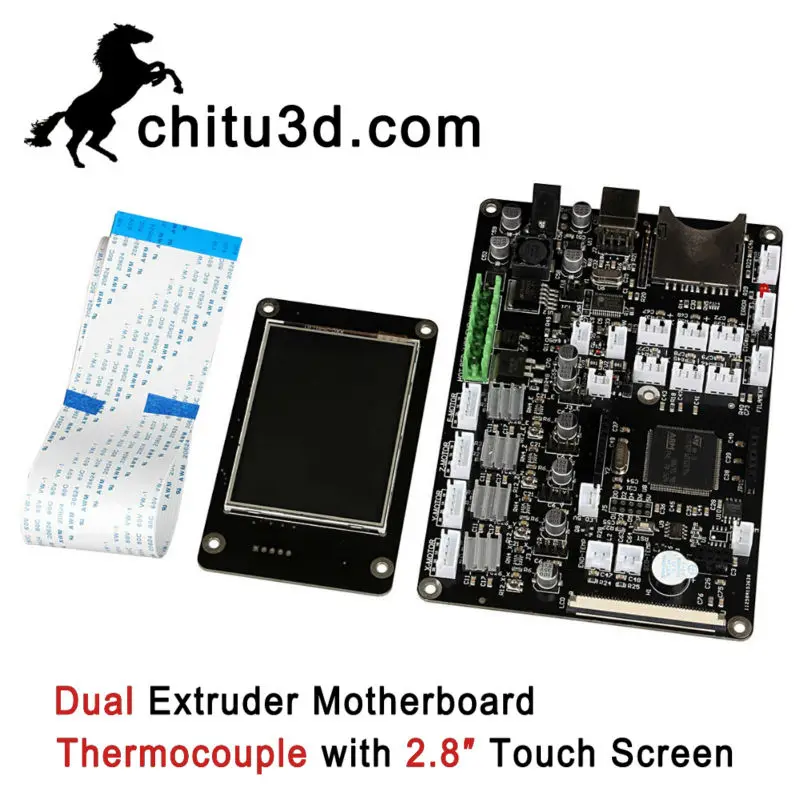

3D Printer Motherboard Chitu V3.6 Dual Extruder Motherboard Thermocouple with 2.8″ Touch Screen Support WiFi APP Control
• Compared to others 3D printer motherboards, especially the open source motherboards which lack powerful computing power (specially for delta printers) for printing in fast speed with detail outcome, this motherboard don’t. The motherboard was born to aid current 3D-printer manufacturers with a stable and full functional motherboard. The firmware includes data and variables collected from different 3D printer manufacturers and in-house testing data. That’s to day, this motherboard was originally mend for 3D-printer manufacturer that wants to offer its customer a 3D-printer with a real stable motherboard. • The motherboard is equipped with a 32-bit high-speed ARM chipset (STM32F103ZET6) which results in high computing power which makes print outcome more detailed even if the speed is increased. The board also has functions that carries out repeated optimization, employing SD file configuration mode which equals to convenient and quick renewal. The motherboard uses self-developed firmware, with all the advantage of open source firmware. The firmware uses SD file configuration, which can be updated easily and quickly. • The board, together with color touch screen, enjoys simple interface and high sensitive touchscreen. The firmware has experienced arc optimization, PID temperature stability optimization and can shutdown automatically after printing. • It also supports breakpoints, which means you can pause it during the printing, save the position, turn off the electricity and the next day you can resume to print again in the exact same position you left of your printing.
Parameters of Mainboard
External Dimension:150*100mm Microprocessor : STM32 Input Voltage : 12V~24V 10~15A Power Interface: Switching power supply or adapter Motor Driver: Allegro A4988 (1/16 microstepping) ChiTu V3.6 can be externally connected motor drive Motor Driven Interface: Single head motherboard has four motor interface Double head motherboard has five motor interface Temperature Sensor Interface: 3 paths of 100K NTC (thermistor) 2 paths of MAX6675(thermocouple) Color Touch Screen: 2.8 or 3.5 inches of TFT Upgraded Firmware supporting SD card (supports 8G<= FAT 16 and FAT32) Square USB that is convenient in pull and plug, Communication Baud Rate is 115200 File Format Supported: G-code Machine Structure Supported: XYZ type, Ultimaker type, Hbot type, Delta, Kossel type. Recommendation of Software: Cura/Repetier-host/Makerware/Simplify3d Expandable modules: WIFI module, power module( continue to print after power off), large motor drive, SD card module, USB drive module Shipping included: 1 x Dual Extruder motherboard (with Thermocouple) 1 x 2.8″ TFT Touch Screen 1 x 50cm FFC cable
1. We support both retail and wholesale.
2. Customized services are available. Welcome to contact us for more details.
We Ship via China Post Air Mail, DHL or other ways to Worldwide. Please have a check if the shipping service is available to your country or not. Delivery time depends on destination and other factors, 8-10 days some countries may takes up to 25 business days.
1.We accept alipay here. 2.All major credit cards are accepted through secure payment processor ESCROW.
Warranty and Guarantee:
1. Online shopping has a risk. Before placing your order, please confirm details with us if you have request on items. 2. We only guarantee that we have quality problem of products within 7 days to return and refund service.
1. We are not responsible for any custom duty or import tax. 2. In order to help you get the parcel with free tax or lower tax via customs, we will declare it as “gift” with a lower value. 3. We are not responsible for any delay of orders after shipped out.But we will track newest information for your order and help you all the way. In fact,we also want the goods to be delivery soon, so every buyer will be satisfied with our service. But the speed of China post is out of my control. Thanks for your understanding.
1. Your feedback is extremely important to us. If you like our items and service please click 5 star in feedback. 2. If you are not satisfied with the item please contact with me. we will try our best to give you the satisfying results. Please don\’t random medium review and bad review. Thanks for your support. 3. Trade Serious Honestly! Please place bid only if you agree with all the terms.
