Tips: Don’t forget to contact us get the Guide, Manuel or Video!
Need with FR2205/2300KV motor version choose bundle 1.
Need FR2306-2300KV motor version choose bundle 2.

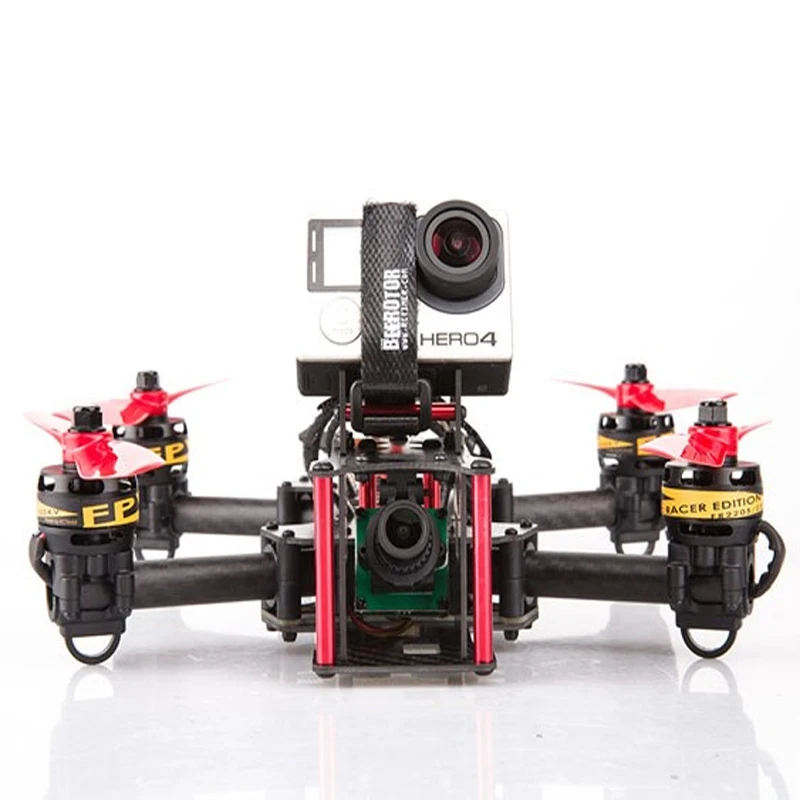

BeeRotor has designed the new Victory 230 as a purebred, high-speed FPV racer. This comes with high power Rctimer FR2306-2300KV/ FR2205/2300KV Racing Motors. The processor by F3, RCTimer X-Drone 20A ESCs, Serial receiver support… and so much more, and so much more. Victory230 is ARF, just add a compatible R/C Rx (PPM/SBUS/SumD/DSM2/DSMX and RSSI input), and a battery, and go race, everything else is included, from the BeeRotor Tx antenna, to the props.
• Optimization for Cleanflight/Betaflight firmware
• ARM Cortex-M4 core STM32F303CC with 32bit/72MHz/256K Flash/40K SRAM and hardware floating point unit
• MPU6050 and BMP180 Sensors
• Build-in 8MB flash for black box log recorder
• Receiver connector with PPM/SBUS/SumD/DSM2/DSMX and RSSI input
• On board OSD with absolutely original MAX7456EUI+ and standard FTDI debug port
• Connectors for SWD/GPS/MAG/soft-serial/cam-stab servo
• On board Buzzer/12 WS2812B RGB LED/5V-3A BEC
• On board voltage & current sensors
• X-Drone20A ESC 3~4S with BLHeli firmware
• High power FR2306-2300KV/ FR2205/2300KV motors and BR5045BN propellers
• 700 lines CCD camera M12-2.8IR 3MP (PAL)
• 500mW Video transmitter, 40 channels: Cover A, B, E, F bands and R bands
Size (diagonal): 230mm
Motors: FR2306-2300KV and FR2205/2300KV for Optional, ESC: X-Drone20A
Flight Controller: STM32F303CC “BeeRotorF3(BRF3)”
Arms: Φ12 Carbon Fibre tube
64Mbit flash for logging
Rx Support: PPM/SBUS/SumD/DSM2/DSMX and RSSI input
Rx Selection: Fully Automatic
Case: Zipper case included
USB Port: Through-Hole (Much more robust)
LED Board: more robust
FlightCam: BeeRotor 700TVL CCD / M12-2.8IR(3MP)
Weight: 368g without battery
1 x Victory230 Quad, Fully assembled and tested
1 x Victory230 Zipper case
1 x SBUB Interface Cable
4 x BeeRotor 5045BN Props
1 x Extra one set Plastic parts
1 x GoPro mount
Tips: GoPro don’t include
