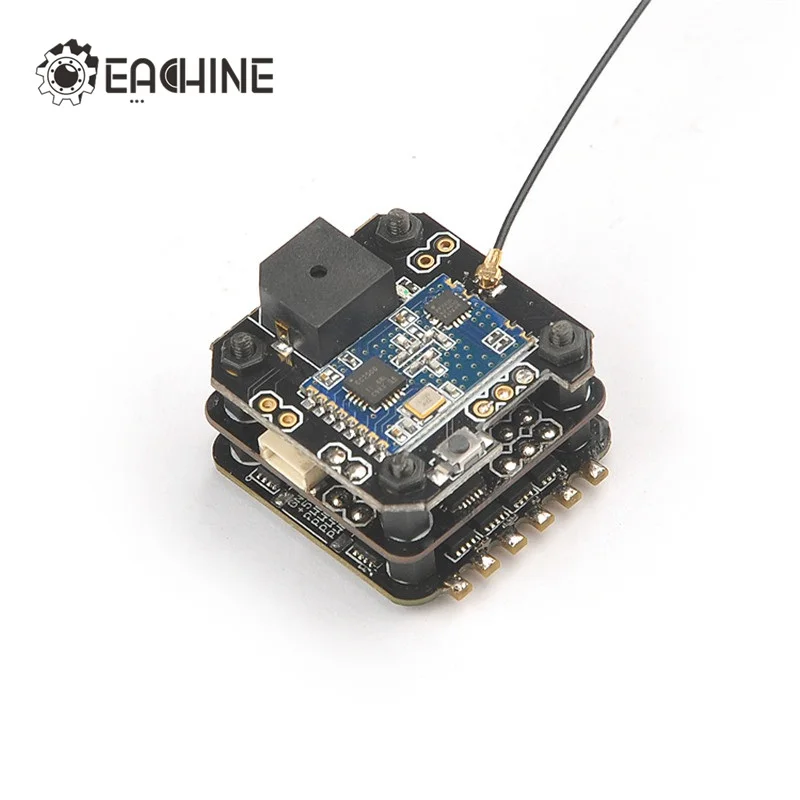

2017 Eachine Minicube 20x20mm F4 OSD Compatible Frsky Flysky DSM RX Blheli_S 10A For Aurora 68 90 100 RC Racing Drone Quadcopter

100 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 60.99 / piece
Click to view offer
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:


Bundle 1: DSM-X/DSM-2 Bundle 2: Flysky Bundle 3: Frsky

Description: Brand name: Eachine Mount hole: 20mm*20mm Size: 27mm*27mm*20mm Weight: 9.4g
1. Eachine Minicube Receiver 1). Eachine Minicube DSM-2/ DSM-X satellite Receiver Frequency range: 2.403-2.479Ghz Input power: 5V Response time: 22ms / 11MS Resolution: 2048 Display method: LED Operating voltage: 3.3V Working current: 60MA Size: 27mm*27mm*7mm Mount hole:20mm*20mm Weight: 3.1 g Antenna length: 100mm Data format: Serial port Protoco: DSM-2/DSM-X Distance: no ground interference (1 m from the ground ) > 300m Uses: indoor small aircraft. Compatible Transmitters: DSM-2 / DSM-X series of remote control
Built-in Buzzer (Low voltage alarm) Configure by Betaflight configurator

2). Eachine Minicube Flysky 8CH AFHDS2A receiver Channels: PPM 8CH Model type: Multi-rotor Frequency range: 2.408-2.475GHz 2.4GHz system: AFHDS 2A Work Mode: PPM Transfer method: FHSS Built-in Buzzer (Low voltage alarm) Configure by Betaflight configurator Antenna length: 100mm No ground interference ( Transmitting and receiving 1 m from the ground): >300m Working current: 40mA Size: 27*27*7mm Mount hole:20mm*20mm Weight: 3.1g
Ibus output with failsafe Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

3). Eachine Minicube Frsky Compatible 2.4G 8CH Receiver: Frequency range: 2.403-2.479Ghz Channels: 8CH Work mode :D8 Mode Output: SBUS Antenna length: 100mm No ground interference ( Transmitting and receiving 1 m from the ground): >500m Built-in Buzzer (Low voltage alarm) Configure by Betaflight configurator Working current: 80mA dimension: 27*27*7mm Weight: 3.5g Compatible with FRSKY ACCST Compatible with X9D(Plus)DJT/DFT/DHT Telemetry: RSSI, 1S-3S voltage (A1), 1S-3S voltage (A2) 2. Minicube F4 integrated Betaflight OSD Size: 27*27mm Mounting hole: 20*20mm Weight: 3.3g Processor: STM32F405RGT6 Sensor: MPU-6000 (connected by SPI) Firmware version: betaflight_3.1.7 OmnibusF4SD Built-in BEC: 5V/1A Power supply: 2-4S lipo battery PPM/SBUS/DSM-2/DSM-X input LED_STRIP solder pin Buzzer solder pin With LC filter Built-in OSD (Using F4 MCU controls OSD over SPI bus in DMS mode) Built-in voltage detection, alarm Support the newest DSHOT ESC Support programmable LED_strip (turn off transponder before using) Support BLheli suite, Blheli_s pass-through ready
3. Eachine Minicube 10A BLHeli_S 4 In 1 ESC: Size: 27mm*27mm*5mm Mount hole: 20mm*20mm Firmware version: BLHELI_S 16.5 BB2, 48MHZ Chip Lipo Battery: 2-3S Con. Current: 10A pea k Current: 15A (10S) BEC: 5V @ 0.1A Programming: YES Betaflight passtrough ready Dshot600 ready(Default) Support oneshot42 oneshot125 Multishot Dshot Damped light on Package included: 1 x Minicube Receiver 1 x Minicube F4 Flight Controller 1 x Minicube 10A BLHeli_S 4 In 1 ESC










Return:

If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back

Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
