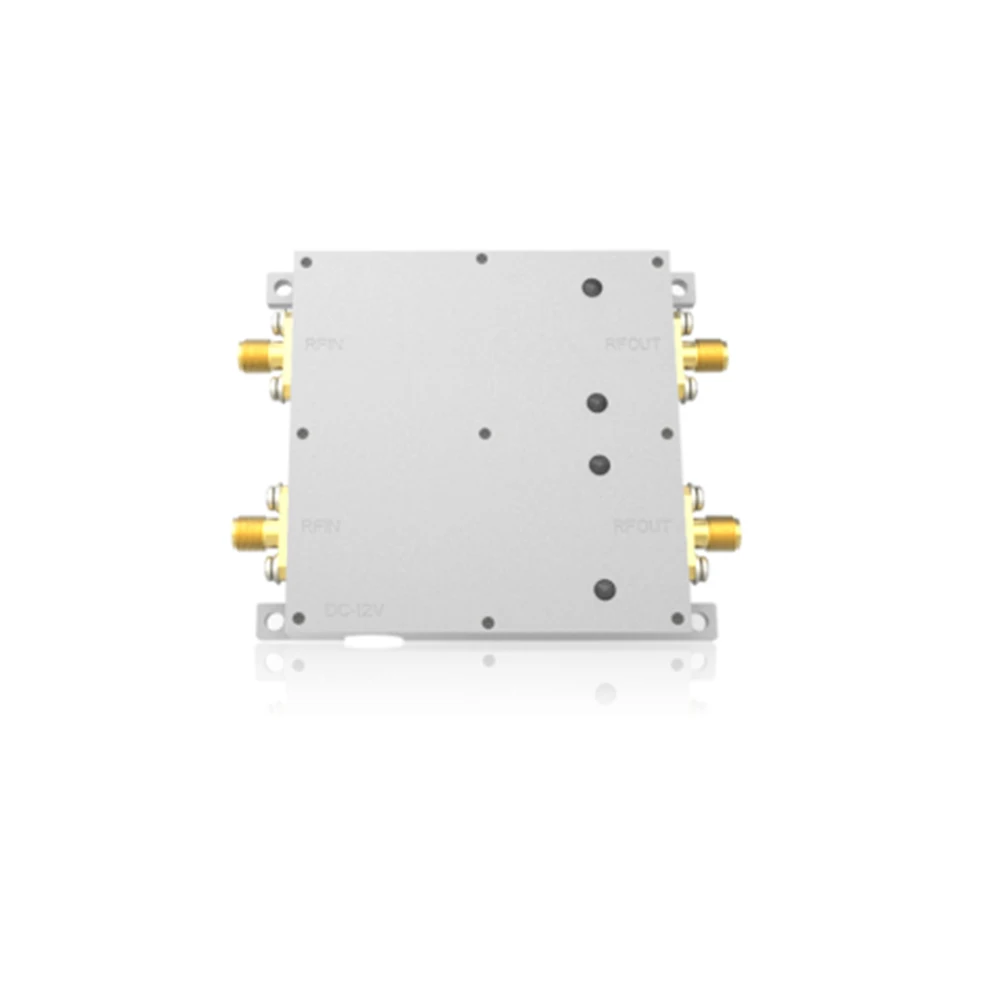

2.4G Dual Signal Channel Bi-Direction Wifi Amplifiers Wifi Boosters for FPV Drone DJI

60 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 60.00 / piece
Click to view offer
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Specification:

2.4G channel 1/channel 2

  • Operating Range: 2.4~2.4835GHz
  • Operating Voltage:6~16V
  • Receiving Gain: 10±1dB
  • Transmission Gain: 15±1dB
  • Input Power Range: 7~21dBm
  • Max Output Power(P1dB):4w(36dBm)
  • EVM:3%@28dBm 802.11g 54Mbps OFDM 64QAMBW 20MHz
  • Electronic Current:450mA@Pout 28dBm 12V
  • Noise Figure:≤2.5dB
  • TX/RX Switch Time Delay:≤1us
  • Operating Temperature:-20℃~60℃

Product ​Applications

  • Wireless LAN 802.11b/g/n access point
  • 2.4GHz IOT
  • 2.4GHz WLAN network bridge
  • 2.4GHz Drone, UAV

​Structure

  • Size: 76.4*65.8*13mm
  • Connector: Input SMA-KOutput: RP-SMA-K
  • DC Socket: 2.0*0.7mm DC
  • Shell: Aluminum
  • Net Weight: 0.110Kg

Note:

  1. Electric current: 12V/2A
  2. Please add extra radiator aluminum fin or fan when the output power over 2W
  3. Please connect the antenna first then supply power, finally connect the signal device.
