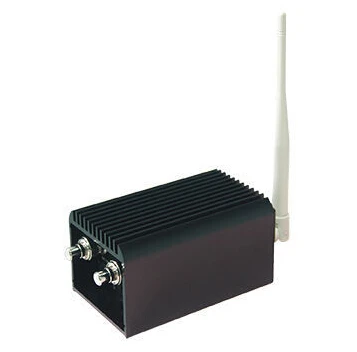

10KM Long Range Wireless Video Transmitter 1.2GHz 4 Channel 5W FPV Transmitter
KP-A5 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 5~10KM or so, if the raising of the high gain directional antenna, increased to 15KM away. If you use it for UAV, The transmission range can reach about 60km. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible. It’s not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment. Features:
- Small size, light weight, easy to carry, good installation
- Image, audio sync, color black and white compatible
- Highly integrated, stable and reliable transmission distance
- Using FM mode, anti-interference ability, good image quality
- Responsive, timely, send and receive real-time transmission
- Wireless transmission: no need to set up communications cable
- Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project
|Number of channels||4CHs/8CHs Optional|
|Video Output||1 Vp-p(FM)|
|Audio Output||1 Vp-p(FM)|
|Audio Carrier Ware||5.5M 6.0M|
|Distance||5~10KM (NLOS); 50-70KM (LOS)|
|Overall Configuration||Transmitter, receiver, AV cable, power supply, antenna|
|Temperature||-10°C ~ +50°C|
|Dimensions (L * W * H)||Transmitter:111*67*60mm. Receiver:116*80*21mm|
|Box size (L * W * H)||245*160*65mm|
- 12 channel Receiver
- Video cable and transmitter connecting cable
- Power adapters for transmitter, we don’t provide power adapter for Receiver, please use 12V,1A adapter.
Application: If you are seeking an equipment that can transmit the audio and video to a long distance without cable, for example the villa, small lake, bridge or some other open areas, this transmitter system is the right one you need This equipment will cover a long distance in the open area around 10Km But when there are obstacle between the transmitter and receiver, it will be decided case by case This unit is the professional one and the signal is very strong in 1.2G series that can be used to cover the long distance where need strong signal and the industrial project.
